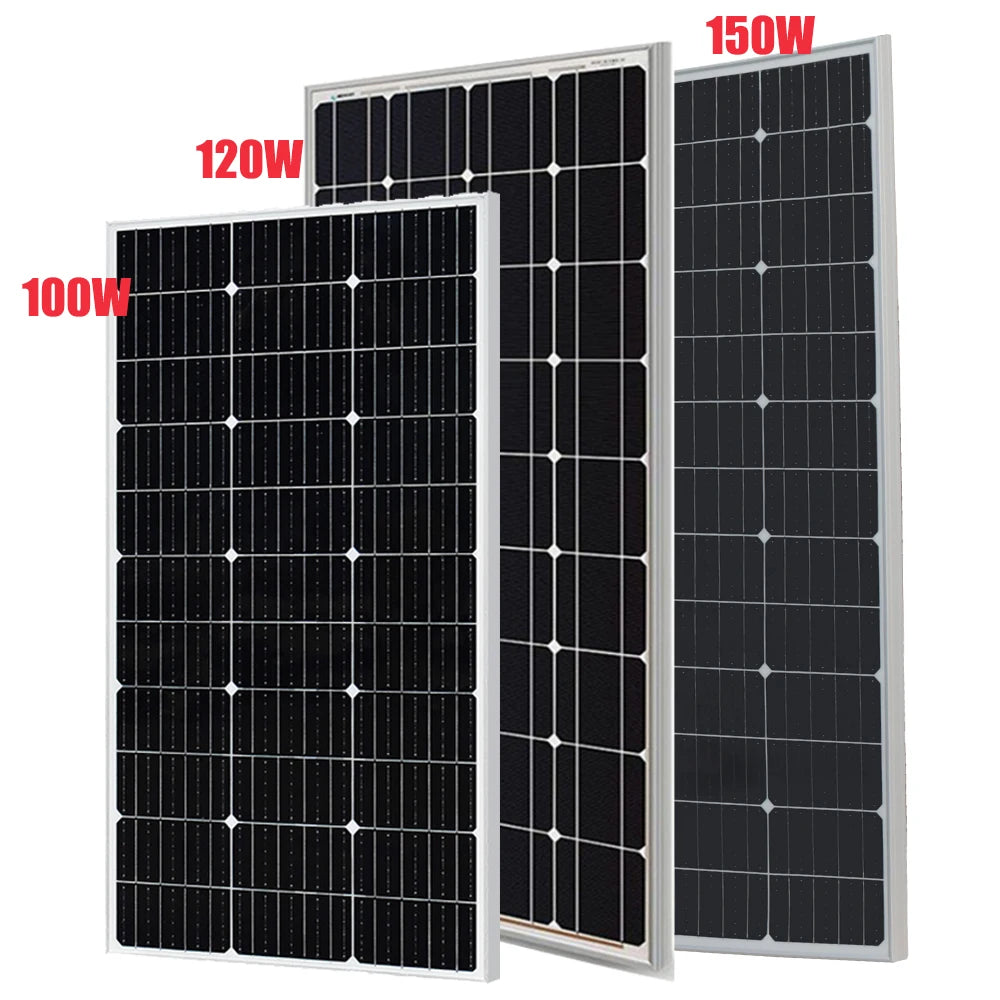

Lightweight solar panel module 100W 120W 150W cell aluminum frame for 12V or 24V 36V battery car home farm boat RV Camping Yacht
Lightweight solar panel module 100W 120W 150W cell aluminum frame for 12V or 24V 36V battery car home farm boat RV Camping Yacht
Couldn't load pickup availability
SPECIFICATIONS
100W Solar Panel size: 106cmx53cmx2.5cm
120W solar Panel size: 117cm x 53cmx2.5cm
150W solar Panel size: 114cmx53cmx2.5cm
Brand Name: xinpuguang
Cell efficiency: 24%
Certification: CE,FCC,RoHS,weee
Flexible Solar Panel: Yes
Foldable Solar Panel: No
Hign-concerned Chemical: None
Material: Monocrystalline Silicon
Max. power: 100W | 120W |150W
Maximum system voltage: 700V DC
Model Number: Solar Panel
Module Efficien: 21.8%
Nominal Capacity: 100W | 120W |150W
Number of Cells: 36cell /42cell
Number of Panels: 1
Origin: Mainland China
Painel Solar: Placa Solar
Placa Solar: Panneau Solaire
Solar Boards: Placas Solares
Solar Energy: Paneles Solares
Solar Panel For Home: Panel Solar Para Casa
Solar Panel Kit Complete: Panneau Solaire Kit Complet
Solar Panels: Solar Panel Roof
Solar System: Placa Solar Flexible
Type: Solar Panel
Uesd For: Home/RV/Boat/Car/Yacht/Roof/Battery Charger
Weight: 1800g
is_customized: Yes
Lightweight solar panel module 100W 120W 150W cell with aluminum frame for 12V or 24V 36V battery car home boat RV Camping Yacht
Camping Shed

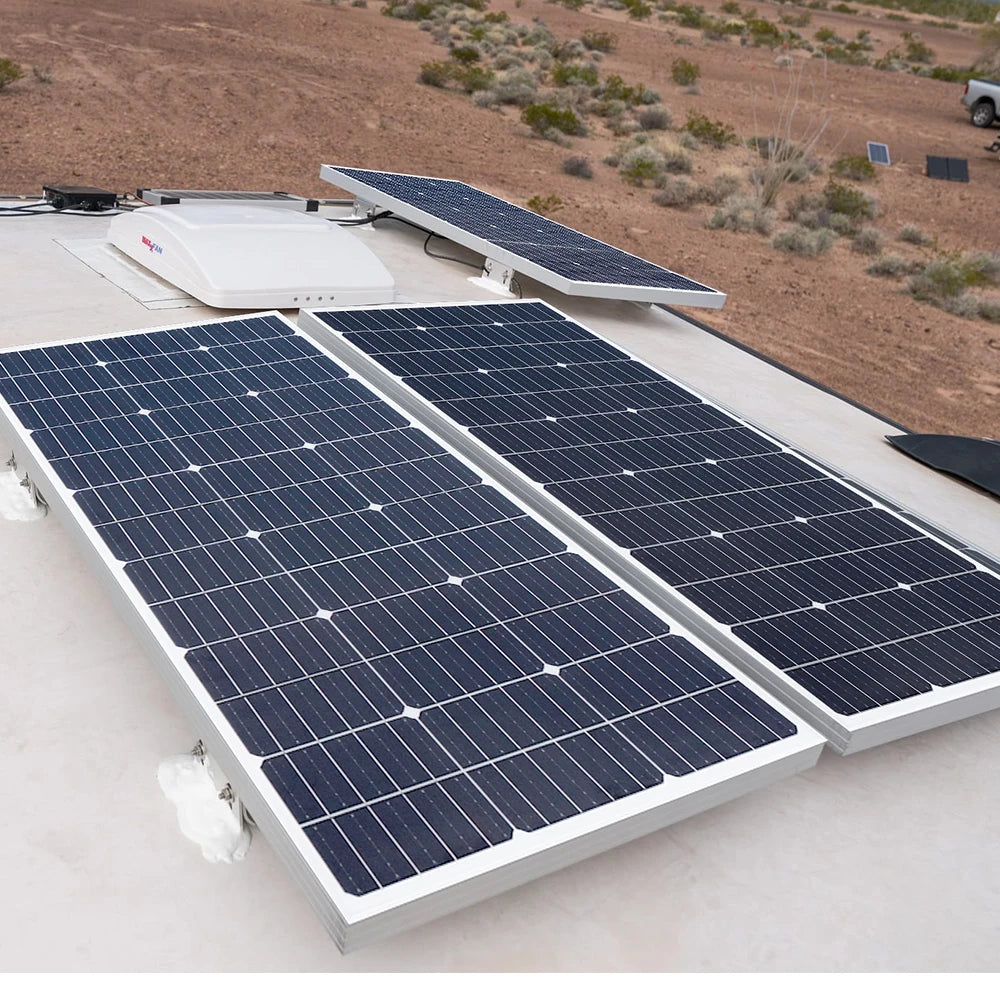

【Versatile】Use it for your RV when camping, or during beach trips with the family, either way this monocrystalline panel provides you with the most efficiency per space.Maximum Series Fuse Rating: 15A

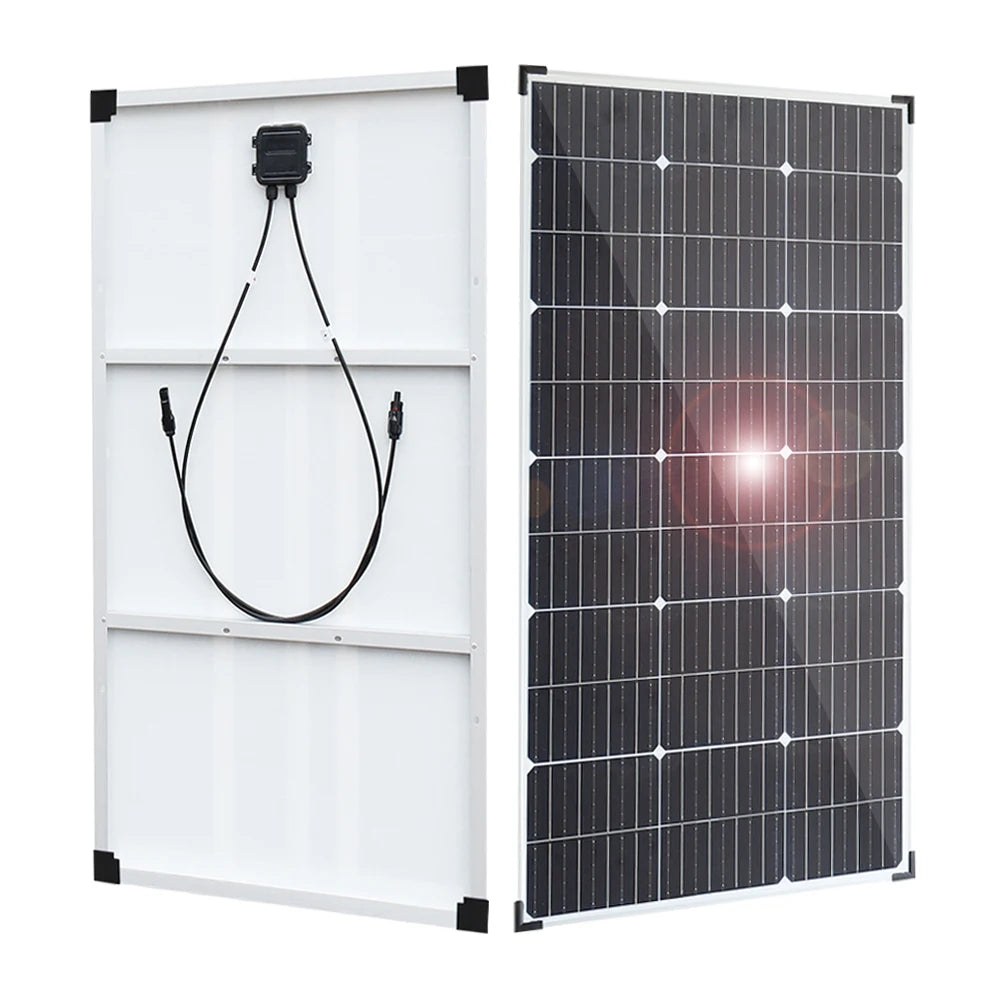

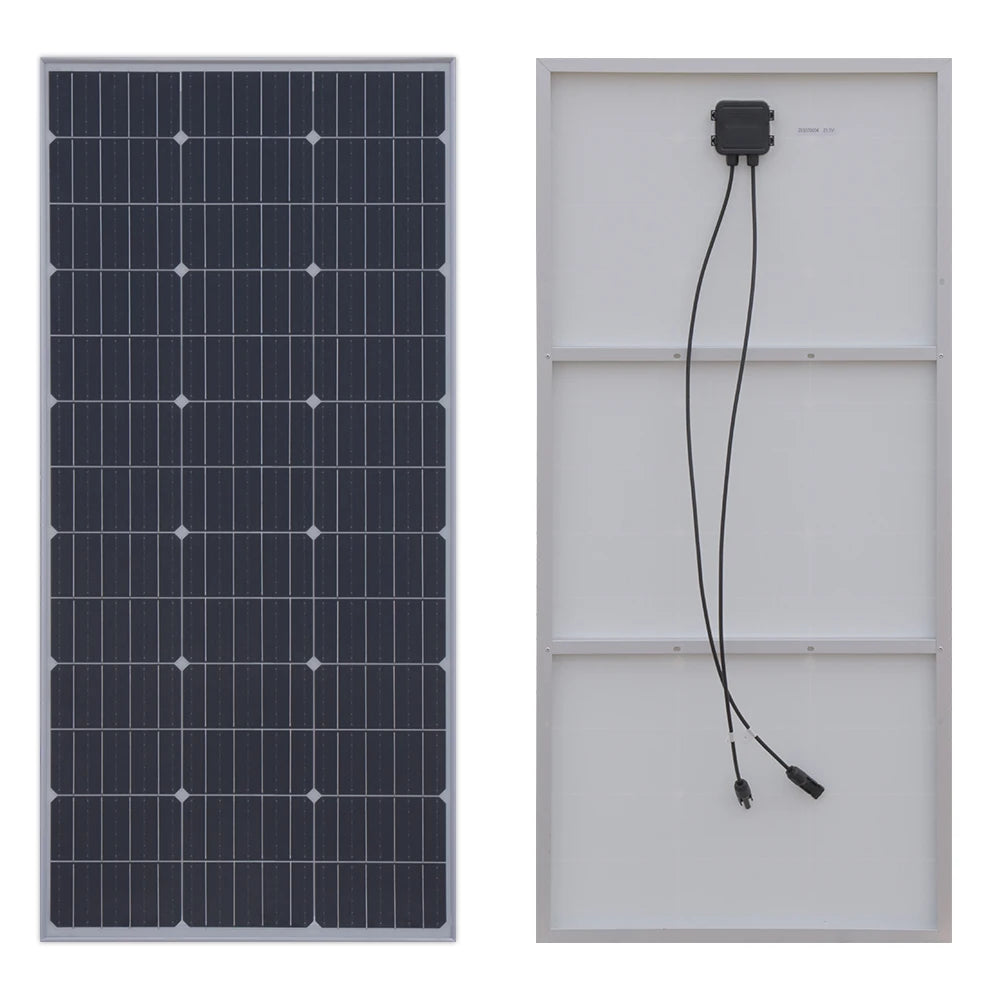

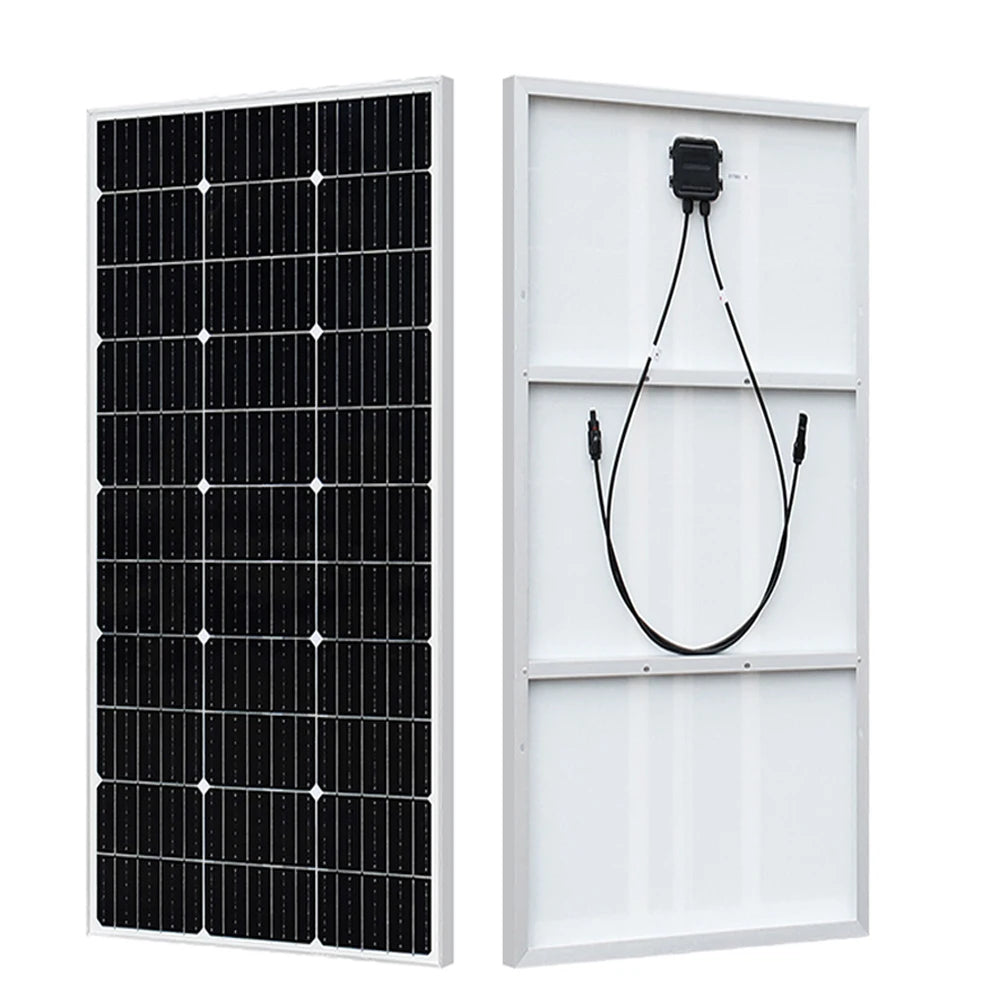

【Installation Ready】Pre-drilled holes on the back of the panel allow for fast mounting and securing. Pre-drilled holes included for grounding. Compatible with different mounting systems such as Z-Brackets, Pole Mounts and Tilt Mounts.
【Reliable】Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life.
【Durable】Guaranteed positive output tolerance (0-3%); withstands high winds (2000Pa) and snow loads (4000Pa)
Note: This is a lightweight solar panel components, products in addition to conventional solar panel features, this solar panel is lighter than the glass solar panels, solar panels and solar panels with a bezel for easy installation, solar panels have two horizontal strips to support the solar panels, better solar panels to dissipate heat!
100w solar panel Specification
Maximum power(Pmax) 100W
Output tolerance ± 5%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Maximum power voltage(Vmp) 18V
Short circuit current(Isc) 6.06 A
Maximum power current(Imp) 5.55A
Cell efficiency 24%
Operating temperature（NOCT） 45±2℃
Temperature range -40℃～+80℃
Number of cells 36pcs
Weight 2600g
Size 1050*530*25mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5
120W PET Solar Panel Specification:
Maximum power(Pmax) 120W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Maximum power voltage(Vmp) 18V
Short circuit current(Isc) 6.8 A
Maximum power current(Imp) 6.5A
Cell efficiency 21%
Operating temperature（NOCT） 45±2℃
Temperature range -40℃～+80℃
Number of cells 36pcs
Weight 3100g

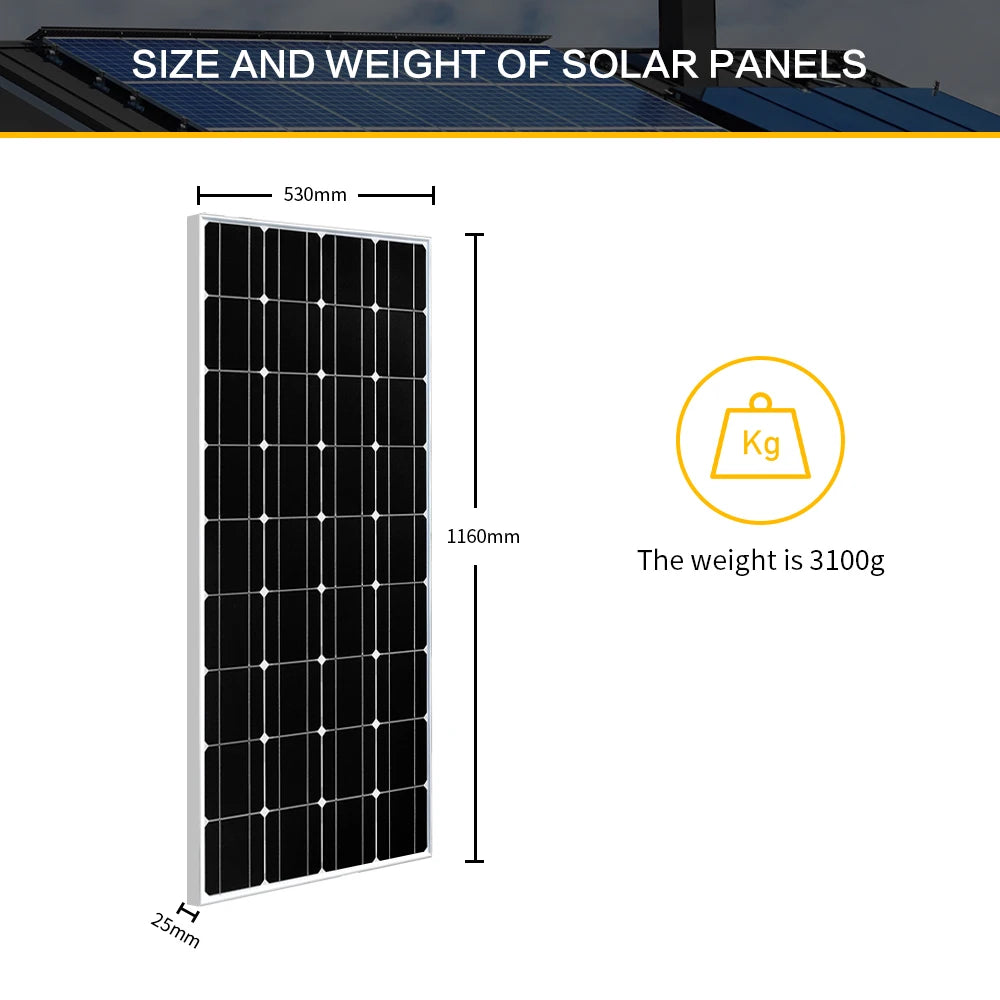

Size 1160*530*25 mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5
150W PET Solar Panel Specification:
Maximum power (Pmax) 150W
Maximum system voltage 1000V DC
Open circuit voltage (cov) 25,9 V
Short circuit current (Isc) 7,59 A
Vmp 21.6V
Maximum power current(Imp) 6,9 A
Temperature range -40℃～+80℃
Cell Monocrystalline silicon cell
Number of cells 39 pieces
Cell efficiency 23%.
Weight 2.74kg

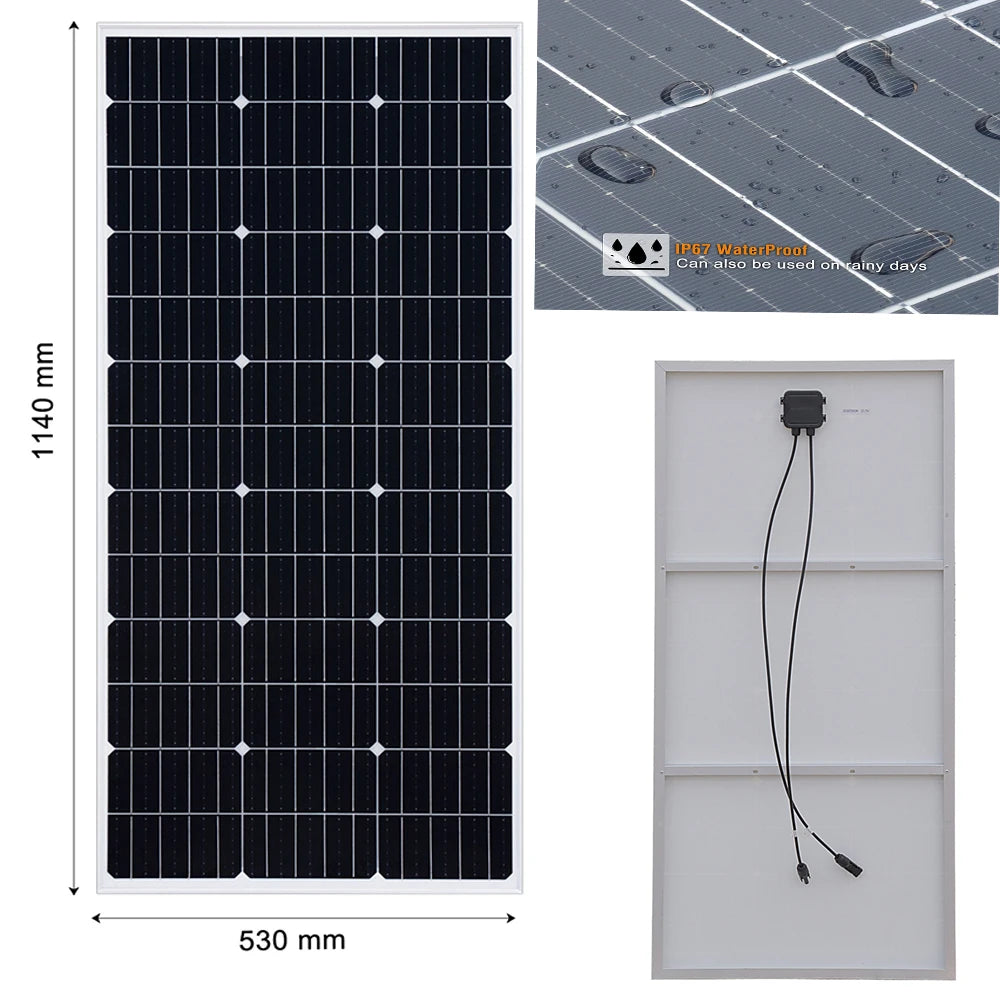

Size 1140 x 530 x 25mm
Standard test conditions lrradiance 1000w/m^2,Temperature 25℃, AM=1.5
Output port 0.9 m long MC 4 connector wire
Solar photovoltaic system manual
Important safety instructions
This manual contains the safe installation and operation instructions of solar modules and solar controller (hereinafter referred to as "controller").
Please read all instructions and precautions in each product manual and manual carefully before installation and use.
1 Solar module products
a. This product must not be in contact with highly corrosive substances to avoid excessive bending and long-term bending;
b. The solar panel should be prevented from stacking and falling down, the solar flexible panel cannot be disassembled, do not collide with hard objects, avoid trampling, and avoid scratching the surface with hard objects during use;
c. A large number of scratches or dirt on the surface of the solar panel may result in low efficiency of the solar panel, which may seriously cause burnout;
d. The suitable ambient temperature range of solar panels: -20 ℃-80 ℃, do not exceed this range;
e. The solar panel must be installed in an area with good sunlight and no shadow. The solar panel may work in the shaded sunlight for a long time and there may be a risk of burnout;
f. When used in series connection, the "+" of the previous component is connected to the "-" of the next component. The same panel cannot be directly connected to the positive and negative poles.
2 Solar panel connection installation method
When you use a 12V battery, use a parallel connection; when you use a 24V battery, use two serial connections. Please install the solar panel on a smooth surface with good sunlight and no shadow, and try not to install it on uneven areas. Solar panels can be fixed with glue or bolts.
Connection 1.Connect the battery to the charge regulator - plus and minus. 2.Connect the photovoltaic module to the regulator - plus and minus . 3. Connect the consumer to the charge regulator - plus and minus. The reverse order applies when deinstalling! An improper sequence order can damage the controller!
