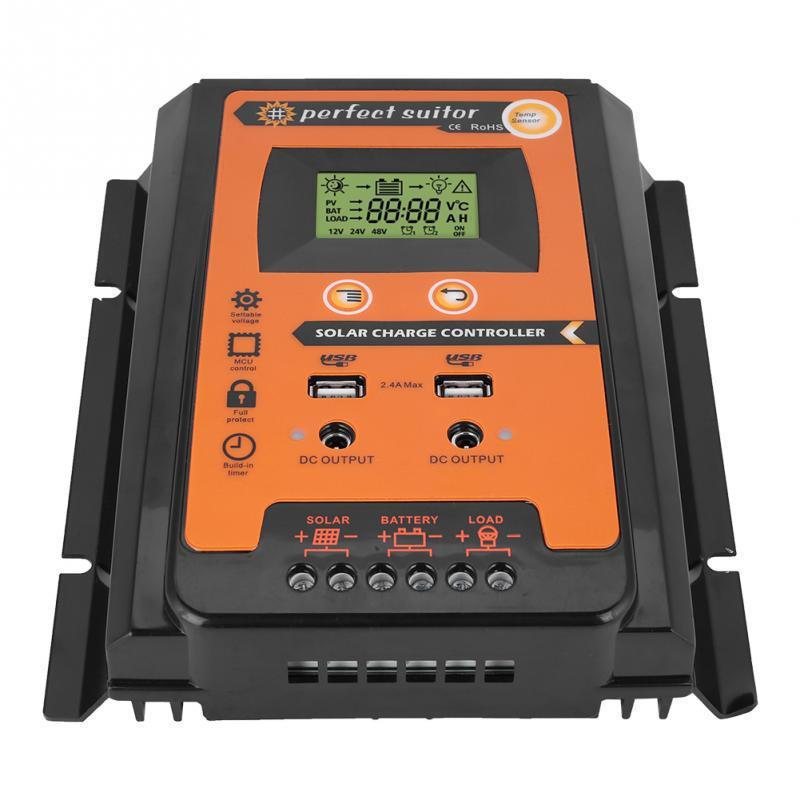

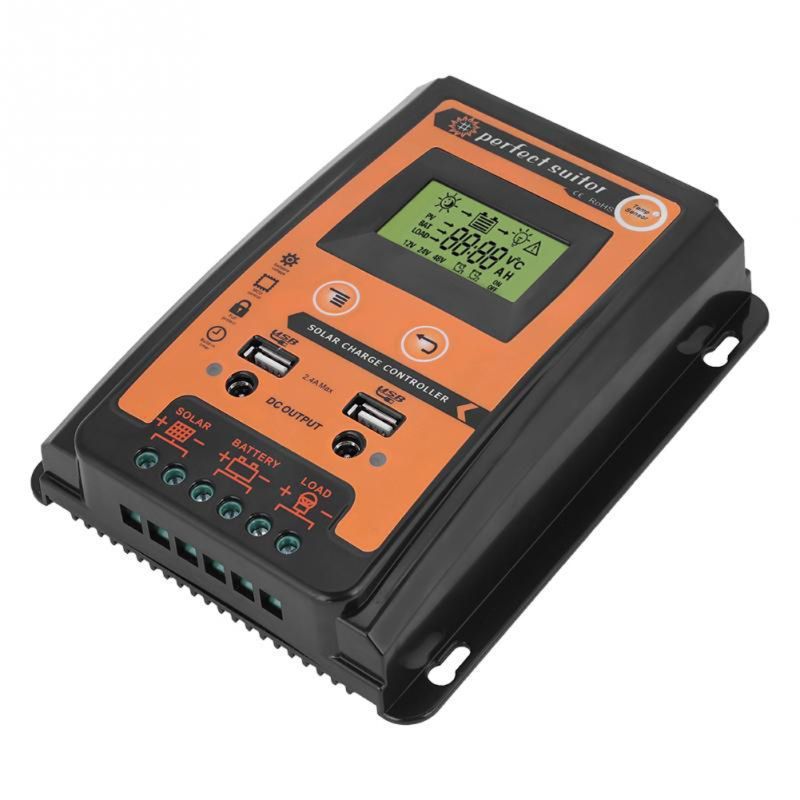

New Explosion PWM Solar Controller 12V24V30A 50A 70A Solar Battery Charge and Discharge Controller

New Explosion PWM Solar Controller 12V24V30A 50A 70A Solar Battery Charge and Discharge Controller

Regular price $4,300.00 USD
Regular price Sale price $4,300.00 USD
Sale Sold out

Product Information:


1. Automatic identification of system voltage, 12/24V automatic identification.
2. The load control mode can be selected, and the timer function of the street light can be reset at night.

3. With working storage function: record the total running time of the system, record the error timer during the running time, and record the time to fully charge the battery.
4. Reliable overvoltage protection, short circuit protection, overload protection, overcharge protection, and overdischarge protection.

5. Accurate temperature compensation, automatic correction of charge and discharge voltage, improve battery life.
6. Full reverse connection protection.

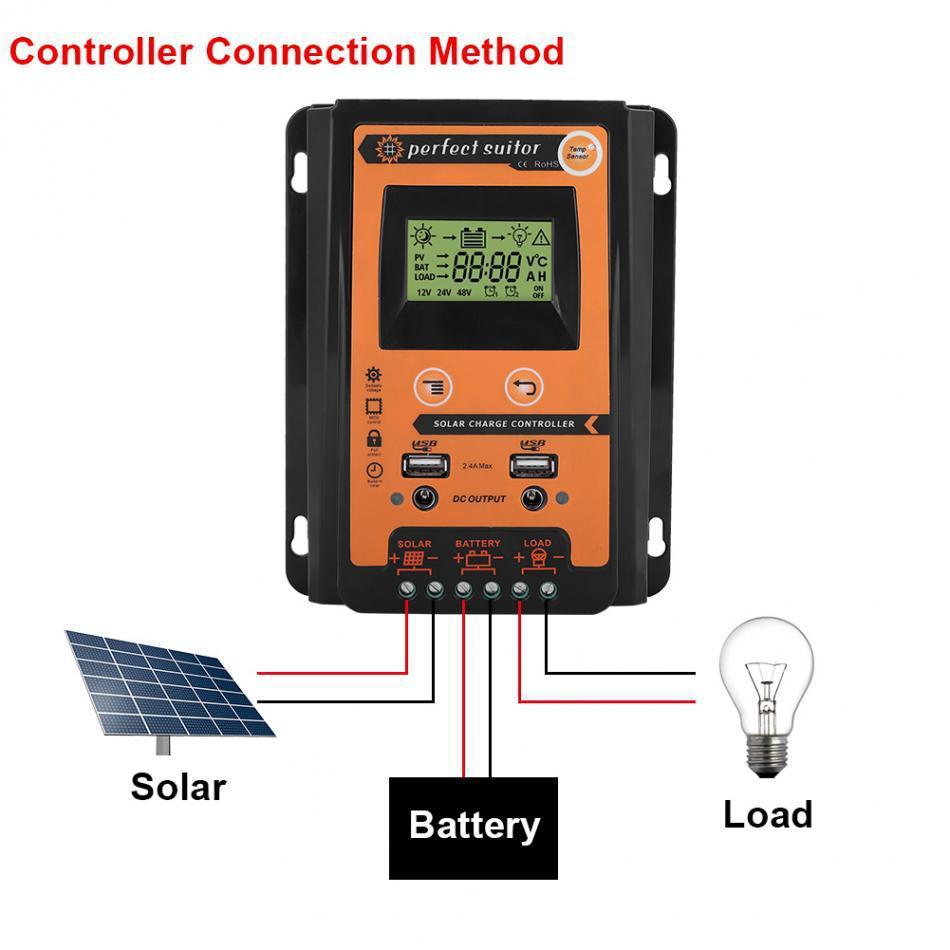

7. The solar panels, batteries, and the positive poles of the solar charge controller are all connected together, and a negative MOSFET series control circuit is adopted.

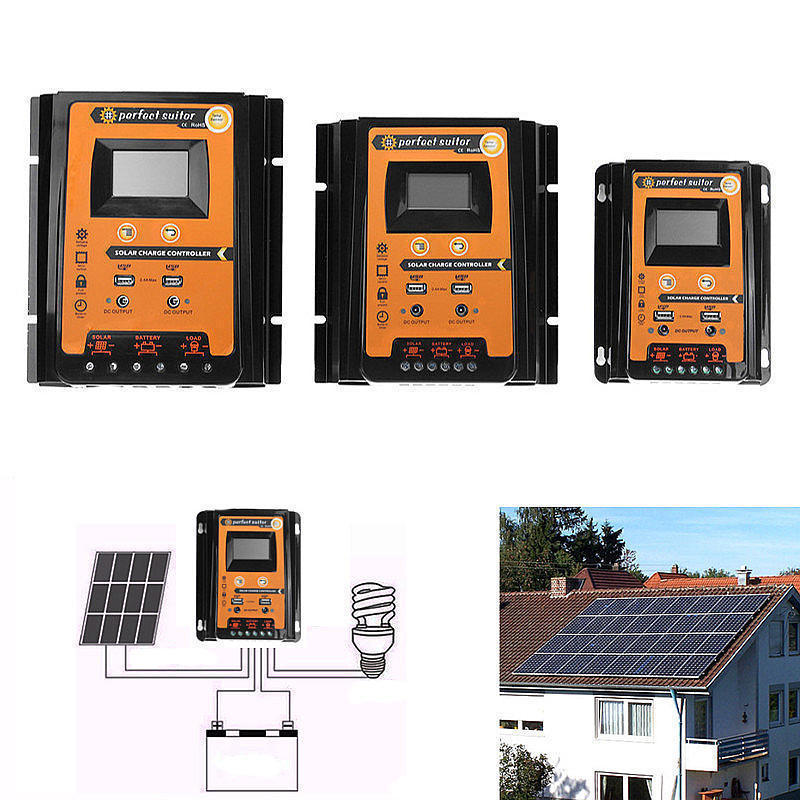

Model: 12V24V30A, 12V24V50A, 12V24V70A
Battery type: Lead-acid battery
Input parameters: 12V24V
Output parameters: 12V24V
Charging current: 30000 (mA)
Dimensions: 210-192 (mm)

technical parameter:

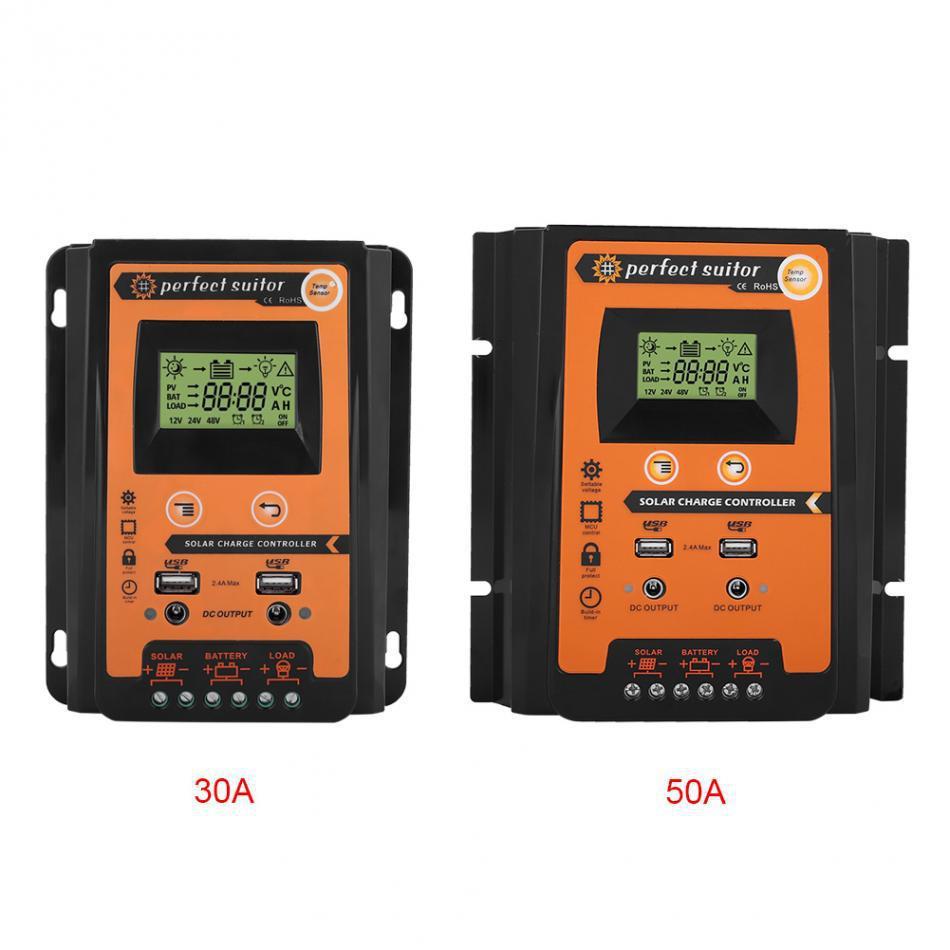

Current: 30A, 50A, 70A (optional)
Rated voltage: 12 / 24V
USB output: 2.4A * 2
Overcharge current (V): 13.7V / * 2 24V
Over discharge current (V): 10.5-11V / * 2 24V
Temperature compensation: -3mv/℃/battery
No-load loss: <45mA
Loop voltage drop: <200mv
Display: LCD display
Waterproof rating: IP32
Material: plastic + aluminum alloy
Color: black + orange

Package LIST:

1*  PWM solar controller
