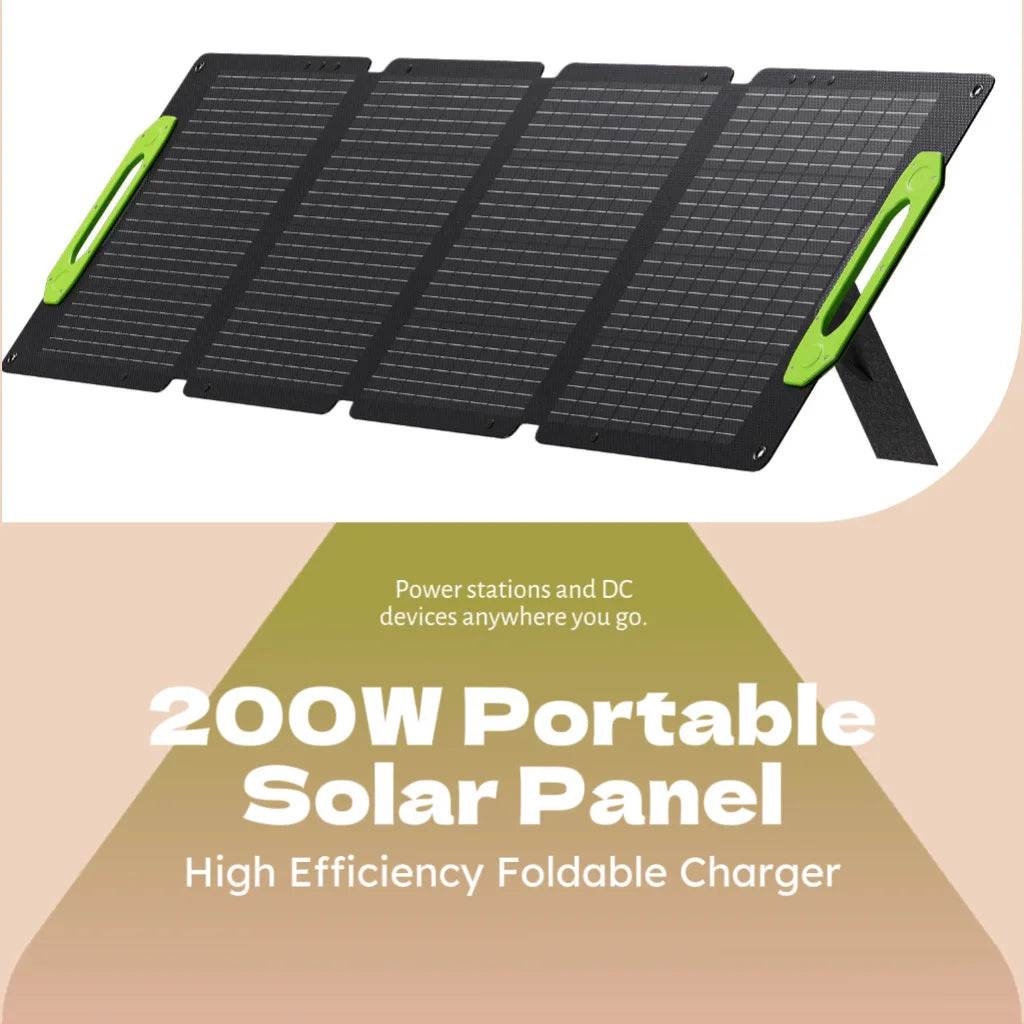

200W Portable Solar Panel for Power Station & DC Devices 200 Watt 23% High Efficiency Foldable Solar Charger Panel
200W Portable Solar Panel for Power Station & DC Devices 200 Watt 23% High Efficiency Foldable Solar Charger Panel
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NoEnName_Null
Choice: yes
Hign-concerned Chemical: None
Model Number: LS-SP200F
Module efficiency: up to 23%
Open Circuit Voltage: 21.6V
Origin: Mainland China
Panel Dimensions: 25"L x 2.2"W x 21.1"H
Voltage at Max. Power(Vmp): 18V
is_customized: Yes
semi_Choice: yes

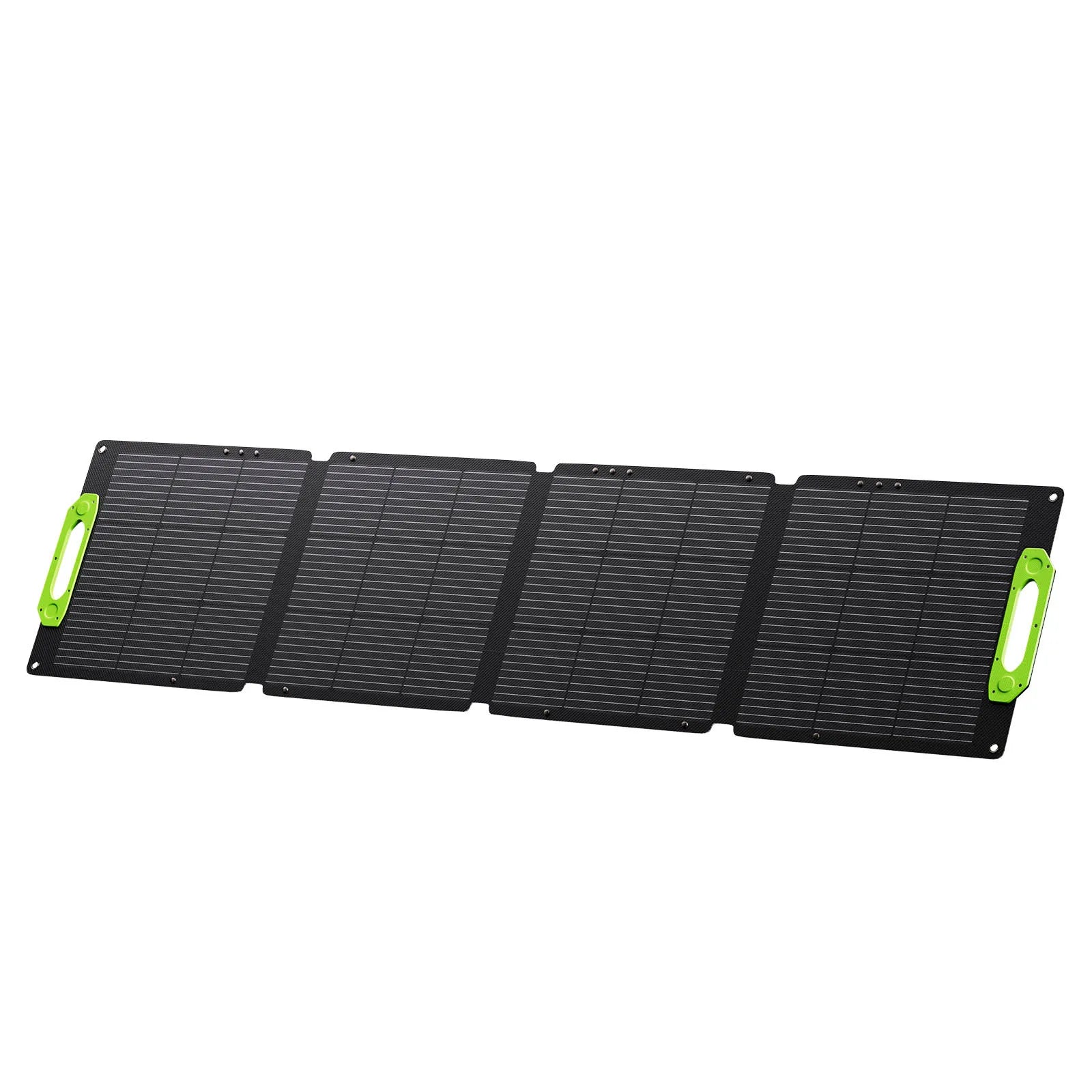

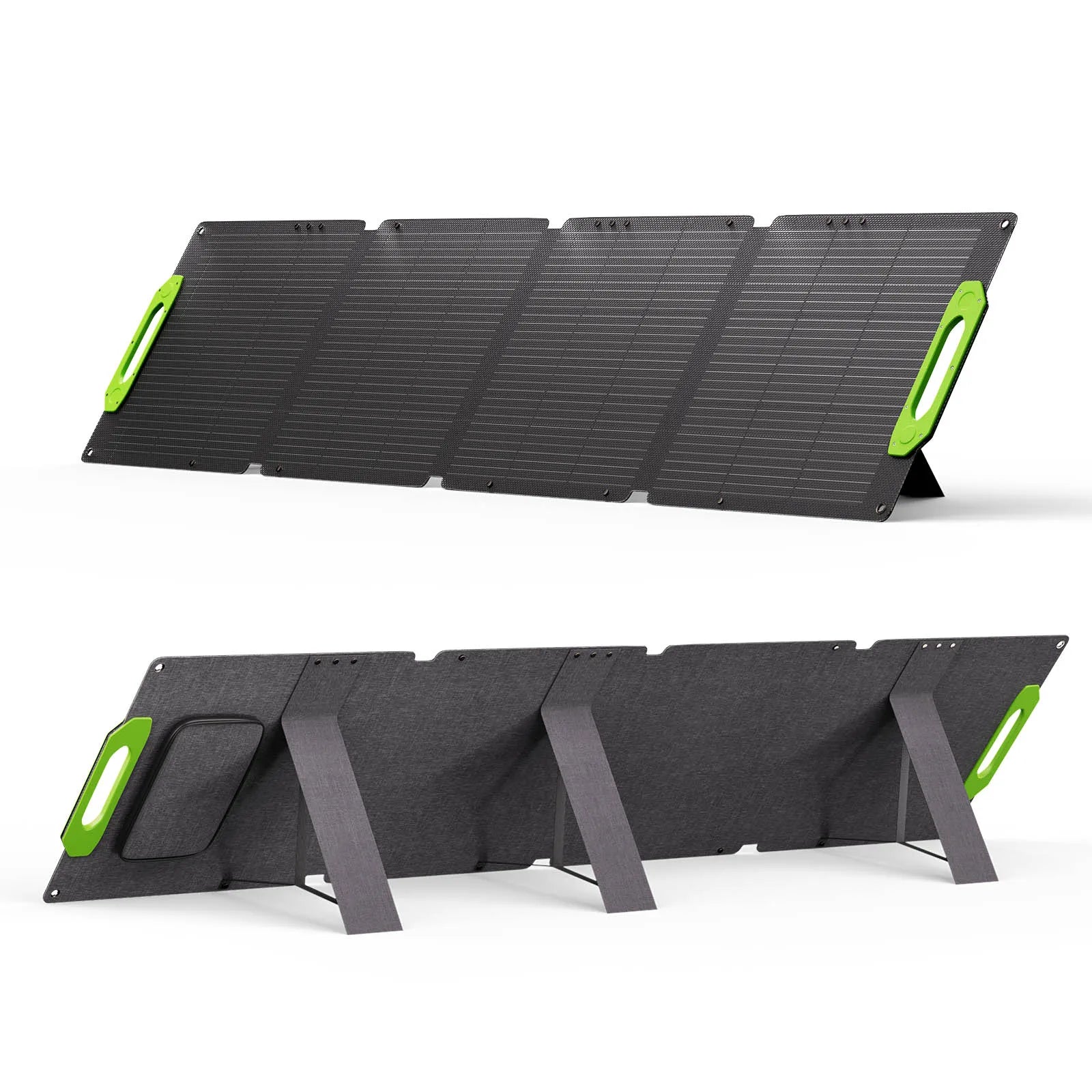

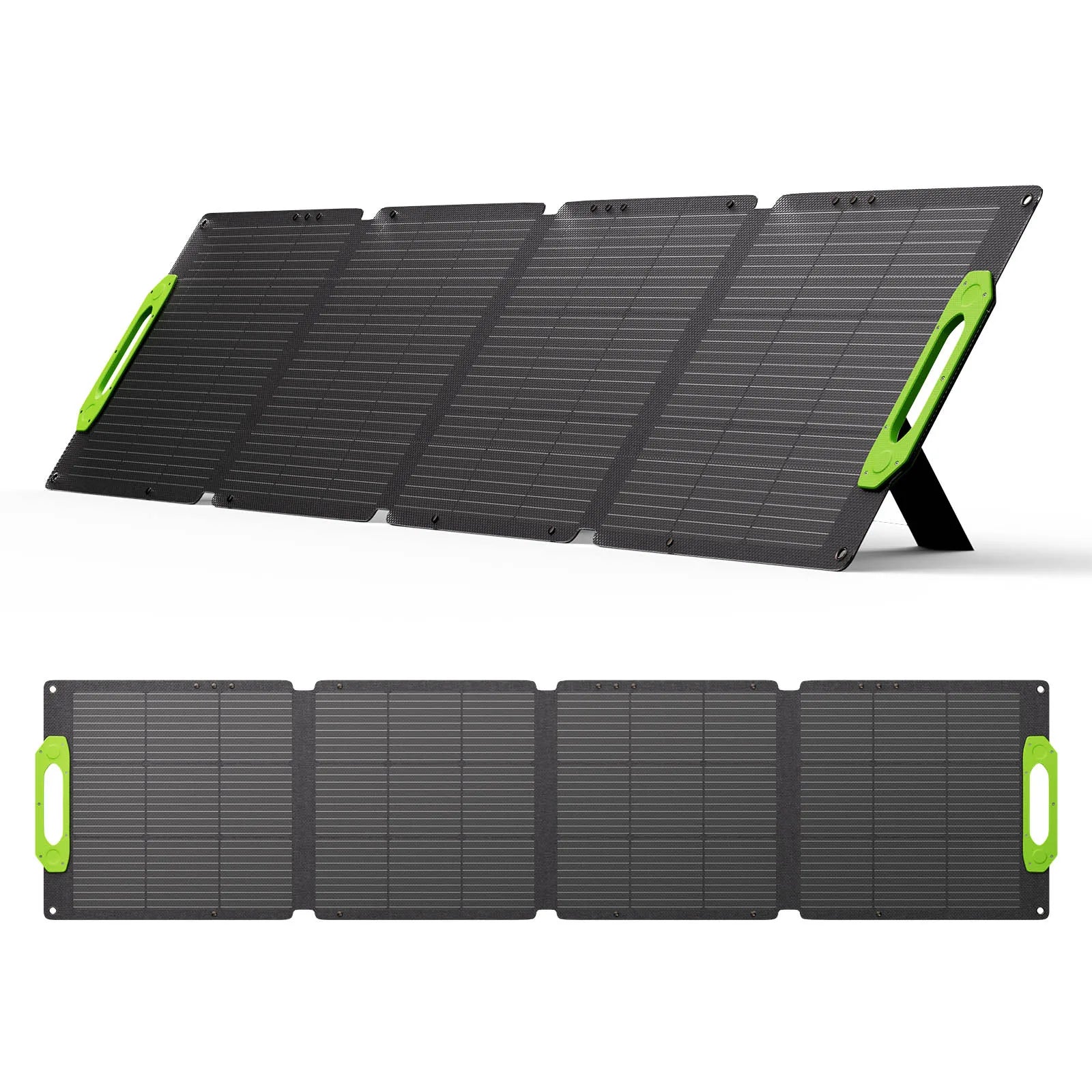

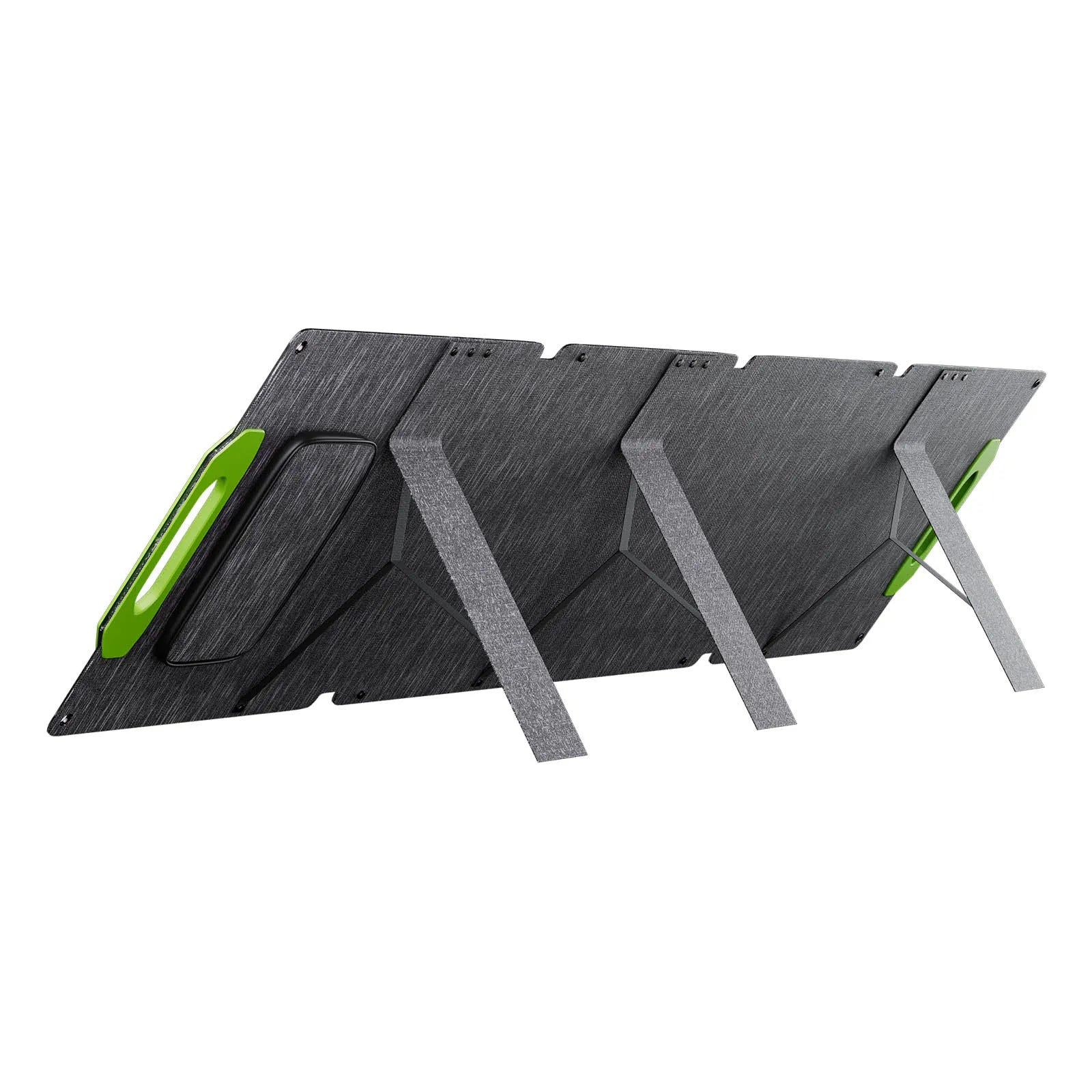

LS-SP200F 200W Foldable Solar Panel, 23% Efficiency Monocrystalline, 4-Fold Compact Design, ETFE Laminated, MC4 USB DC5521 Output, IP67 for Camping
SELLING POINTS:
✅ High Conversion Efficiency — 23% monocrystalline cells guarantee efficient energy capture even in low sunlight, maximizing your solar power generation.
✅ Versatile Charging Compatibility — Integrated MC4, Anderson, XT60, DC5521 connectors support most solar generators, power stations, and battery systems for flexible charging.

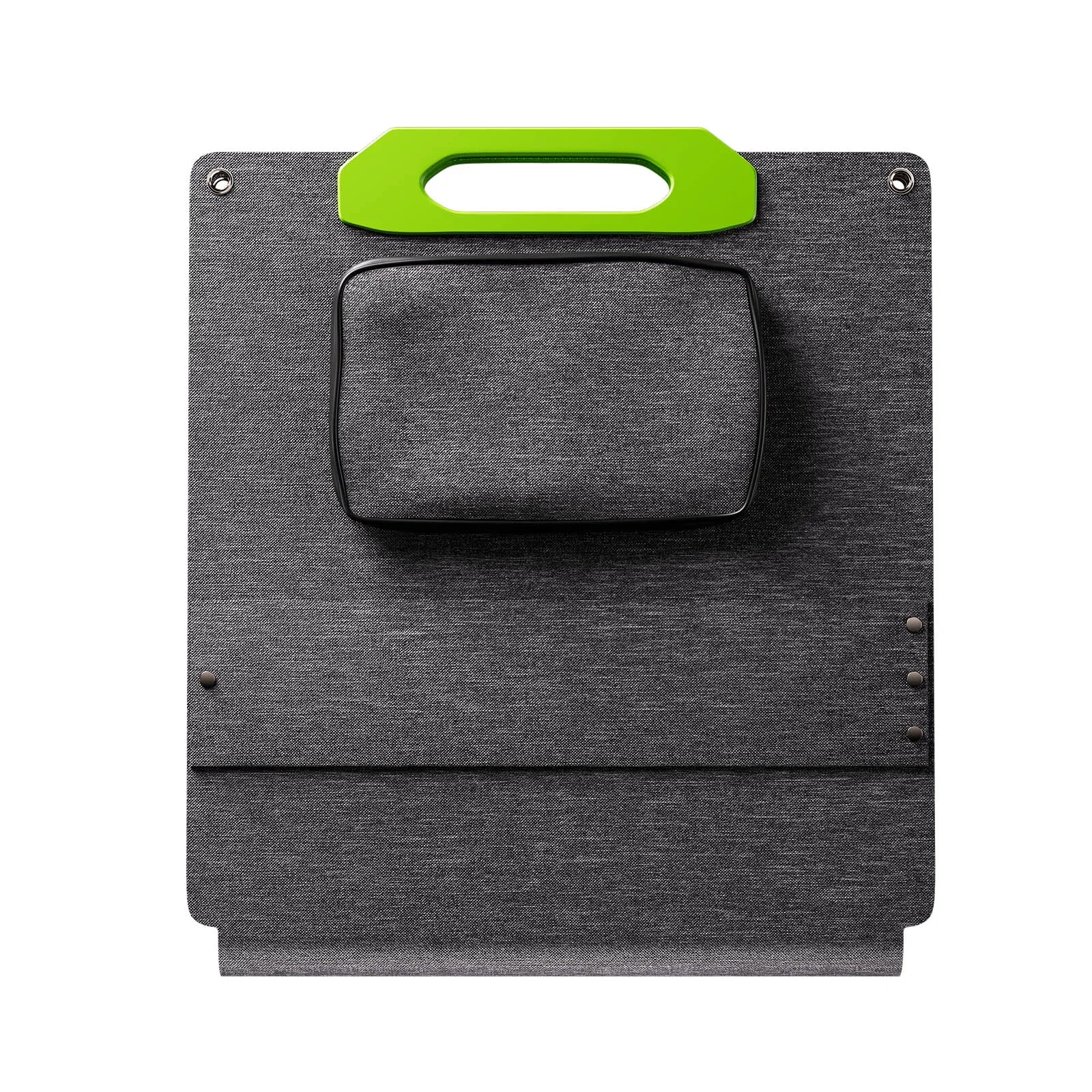

✅ Portable and Compact — 4-fold design folds to 570×590×47mm, easy to store and transport, perfect for RV, camping, off-grid living, and emergency backup.
✅ ETFE Laminated Surface — Durable ETFE coating resists scratches, high temperatures, and UV, extending the panel's service life.
✅ Reliable Outdoor Protection — IP67 waterproof rating plus CE, FCC, RoHS certification, ensures safe operation in -20°C to +60°C harsh environments.
Model |
LS-SP200F |
Type Name |
Foldable Solar Panel 200W |
Maximum Power (Wp) |
200W |
Cell No. |
MONO144 |
Cell Material |
Monocrystalline Silicon |
Process |
ETFE laminated integrated |
Open Circuit Voltage (Voc) |
24.51V±5% |
Short Circuit Current (lsc) |
10.61A ±5% |
Maximum Power Voltage (Vm) |
20.43V ±5% |
Maximum Power Current (Im) |
10.13A±5% |
Efficiency |
23.00% |
Net Weight |
7.54KG |
MC4 Cable Connector |
Yes (2.0mm2,300mm Cable) |
Unfolded Size (L/W/H) |
2130*590*10mm |
Folded Size (L/W/H) |
570*590*47mm |
Number of Folds |
4 Folds |
1 in 1 Carton Dimensions (inner) |
650*635*95mm |
Gross Weight |
8KG |
Protection Degree |
≥IP67 |
Maximum System Voltage |
1500VDC |
Operating Temperature |
-20°C... +60°C |
Certificate |
CE FCC ROHS |
